Recently, an innovative device called “Servo System Single Table Type Tensile Testing Machine” has attracted widespread attention in the market. This device brings a new solution to the field of material testing with its excellent performance and wide range of applications.

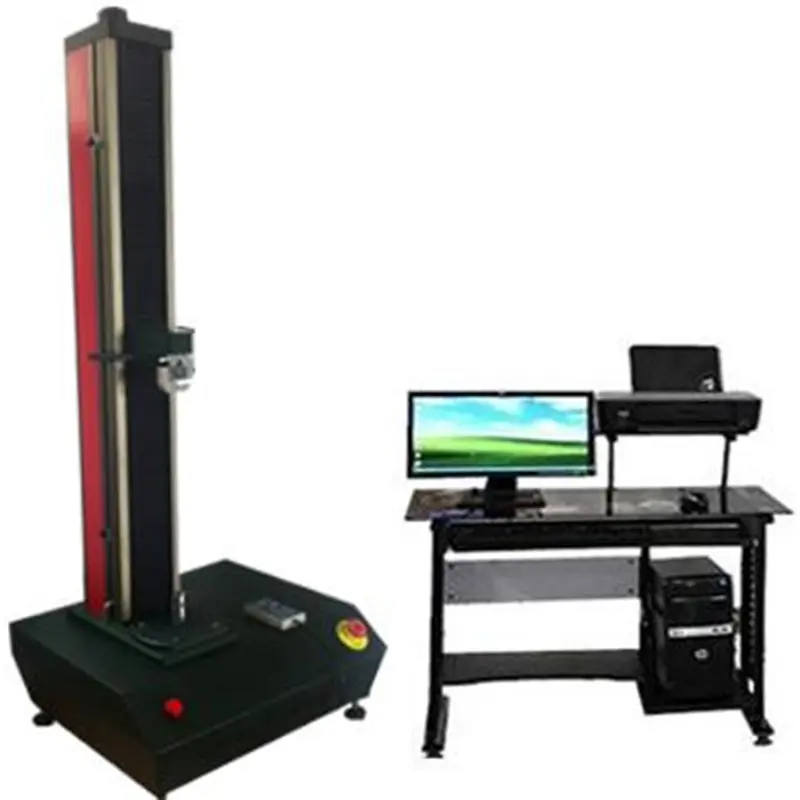

The Servo System Single Table Type Tensile Testing Machine is an advanced testing equipment that integrates electro-hydraulic servo automatic control, automatic measurement, data acquisition, screen display, and test result processing. It adopts a bottom mounted oil cylinder host as the platform, equipped with precision oil pump, electro-hydraulic servo valve, and PC servo controller, realizing multi-channel closed-loop control, and completing functions such as fully automatic control and automatic measurement of the experimental process. This equipment has the characteristics of good professionalism, high reliability, and easy upgrade, and can be continuously enriched and improved with the development of testing machine measurement and control technology and changes in testing standards.
The main functions of this device include testing and analyzing mechanical properties such as tension, compression, and bending. It has a wide range of applications and can be used to test various metal and non-metal materials, such as cable sheaths, films, springs, etc. The equipment can automatically obtain various test parameters, such as ReH, ReL, Rp0.2, Fm, Rt0.5, Rt0.6, Rt0.65, Rt0.7, Rm, E, etc., and meet standard test methods such as GB, ASTM, DIN, ISO, JIS, EN, etc.
One of the highlights of the Servo System Single Table Type Tensile Testing Machine is its highly customized design. The device adopts a modular design, and each system can work independently, making it easy to disassemble, store, and transport. At the same time, the test bench adopts a dual axis design of A and B, which is effectively compatible with high-precision testing in ground environments and simulated space environments (vacuum, high and low temperature) testing. This design enables the device to adapt to testing requirements in different scenarios, improving its flexibility and adaptability.
In the aerospace industry, this device has demonstrated its unique advantages. Due to the extremely high performance requirements of servo systems in aerospace equipment, which often have the characteristics of “small batches” and “multiple batches”, the supporting ground testing equipment also needs to be customized and professionally designed according to the product. The Servo System Single Table Type Tensile Testing Machine, with its modular and automated features, can quickly, efficiently, and accurately test the comprehensive performance of servo mechanisms and motor products, providing key technical and core equipment support for rapid design, validation, and continuous battlefield support of subsequent products.
In addition, the device also has excellent data collection and analysis capabilities. Its data acquisition system supports synchronous acquisition and data analysis of multi-channel analog and digital quantities, and can display the experimental process and curves in real time and dynamically. Through modular software for data processing, users can easily magnify, reanalyze, and edit curves, output different formats of test reports and curve patterns, and support network data transmission.
The launch of the Servo System Single Table Type Tensile Testing Machine marks a new stage of development in the field of material testing. Its outstanding performance, wide range of application areas, and highly customized design provide a more convenient, efficient, and accurate solution for material testing. In the future, with the continuous advancement of technology and the expansion of application fields, this device is expected to play an important role in more fields, promoting the continuous development of material testing technology.
Post time: Dec-05-2024
